0.2mm Carbide Rods: Enabling the Next Generation of AI Server PCB Micro-Drills
Writer： admin Time：2026-06-25 13:55:55
When 0.2mm Becomes the Bottleneck
A leading PCB micro-drill manufacturer received an urgent request from a major AI server board supplier: “We need a drill bit that can handle 8mm-thick boards with 40× aspect ratio. Our current bits are breaking within 500 holes.”
The customer was ramping up production for next-generation AI server PCBs—boards with 24 to 40 layers, made of ultra-hard M9 materials. Their existing micro-drills, made from conventional carbide rods, couldn't keep up. Drill breakage rates were soaring. Hole wall quality was inconsistent. Production was stalling.
The problem wasn't the drill design. It was the raw material.
The Root Cause: Material Limits at Extreme Aspect Ratios
As PCB layer counts increase—from 12–16 layers in traditional servers to 24–40 layers in AI servers—board thickness follows. A 3mm board requires a 15× aspect ratio drill. An 8mm board pushes that to 40× or higher.
At these extremes, the drill bit's rod must deliver:
Ultra-high bending strength to resist deflection
Exceptional wear resistance against abrasive M9 materials
Perfect concentricity at diameters as small as 0.2mm or even 0.1mm
Consistent hardness across every meter of rod
The customer's existing rods were failing on all four counts. Each broken drill meant scrapped boards, wasted hours, and missed delivery windows.
The Solution: Ultra-Fine Grain Carbide Rods

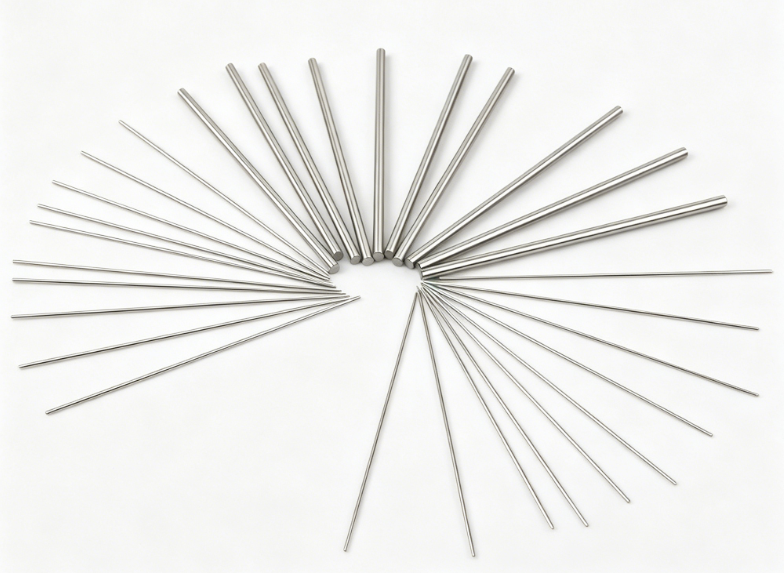

We supplied the customer with 0.2mm diameter ultra-fine grain tungsten carbide rods—and for their most demanding applications, 0.1mm × 330mm rods as well.
The difference came down to material science. Ultra-fine grain carbide—with grain sizes below 0.5μm—offers a combination of high hardness and good toughness that conventional grades cannot match. Fine, uniform microstructure translates directly into more predictable wear behavior and better resistance to micro-chipping under high-speed, high-load drilling conditions.
The mirror-polished surface finish further reduces friction and heat buildup during rotation, extending tool life in real production environments.
The Results: From Frequent Breakage to Stable Production
After switching to our carbide rods, the customer's production metrics transformed:
Drill life: Extended by multiple times, delivering consistent performance over extended production runs
Breakage rate: Significantly reduced, with minimal tool failure incidents
Hole wall quality: Consistently passed IPC Class 3 standards
Throughput: Production line uptime increased substantially
The customer's quality manager summarized it simply:
“We were ready to write off this project as technically impossible. Your rods made it possible. Now we're qualifying for the next generation—40× and 50× aspect ratio drills—and we know your material can handle it.”
The Bigger Picture: Enabling AI Infrastructure
The numbers tell the story. A standard micro-drill costs RMB 1–2. A high-aspect-ratio drill for AI server PCBs can cost RMB 15–20 or more—a 10× premium. As board thickness climbs from 3mm to 8mm, the number of drills required per hole increases from one to four or more, driving costs up by tens of times.
The pricing logic behind this is straightforward: high-end micro-drills demand high-precision carbide substrates, sophisticated coating processes, and rigorous micro-hole dimensional consistency. Each step of the manufacturing chain—from raw material to final coating—requires tighter controls and higher precision. The production barriers are significantly higher than those for conventional products. This is not merely a price increase; it's a fundamental upgrade in the value delivered at every stage of the PCB drilling process.
And the market is only growing. AI server PCB layers continue to rise. M9 materials are becoming standard. The demand for ultra-fine, high-aspect-ratio micro-drills is accelerating.
We're not just selling carbide rods. We're enabling the infrastructure that powers AI.
HAO CARBIDE – Ultra-Fine Tungsten Carbide Rods for PCB Micro-Drills
Diameters: From 0.1mm to 30mm
Lengths: Up to 330mm (and custom lengths available)
Ultra-fine grain: 0.2–0.4μm
Surface finish: Mirror-polished, Ra≤0.05μm
Custom sizes, grades, and tolerances available upon request.
